Type: Commom/ Standard/ High Pure/ High Alumina/ Zirconium;
Length:1-16000m (Can be customized);
Width: 610mm/ 1220mm/ 1830mm (customized);
Thickness: 6-50mm (Can be customized);
Classification temperature ( °C) :1100/1260/1360/1430/1600°C;
Density(kg/m3):96/128/160 kg/m3;

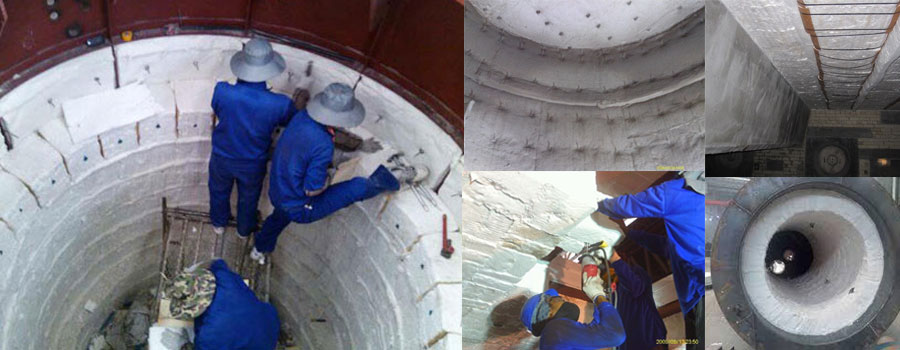

Application: widely used for lining insulation and repairs for furnaces, kilns, ovens, boilers and other kiln/furnace.
Brief Description
Ceramic fiber blanket is needled fiber blanket which have even texture and smooth surface, long fiber and low un-fiberized shots content.our ceramic fiber blanket features light weight, low thermal conductivity, great insulation performance and stability both in high and low temperature, so serve as a perfect solution for high temperature insulation.
Ceramic fiber blanket in Rongsheng company can be divided in to 5 kinds types: Common ceramic fiber blanket 1100(2012℉), Standard ceramic fiber blanket 1260(2300℉), High pure Ceramic fiber blanket 1260(2300℉), High Alumina ceramic fiber blanket 1360(2480℉), High zircon ceramic fiber blanket 1430(2606℉), In addition, we also can customized the ceramic fiber blanket, making the temperature up to 1600℃/3000℉.
Technical Datas
Grade | common | standard | high pure | high alumina | zirconium | |
Classification Temperature (°C) | 1100(2012℉) | 1260(2300℉) | 1260(2300℉) | 1360(2480℉) | 1430(2606℉) | |
Working Temperature (°C) | <1000(1832℉) | 1050(1922℉) | 1100(2012℉) | 1260(2192℉) | 1350(2462℉) | |
Color | pure white | pure white | pure white | pure white | pure white | |
Density(kg/m3) | 96/128/160 | 96/128/160 | 96/128/160 | 128/160 | 128/160 | |
Shrinkage on heating(%) | -4 | -3 | -3 | -3 | -3 | |
24 hours,density as 128/m3 | (1000°C) | (1000°C) | (1100°C) | (1250°C) | (1350°C) | |
Thermal conductivity by mean temp. (w/m.k)(density as 128kg/m3) |
0.09(400°C) 0.16(800°C) |
0.09(400°C) 0.16(800°C) |
0.09(400°C) 0.16(800°C) 0.20(1000°C) |
0.12(600°C) 0.20(1000°C) |
0.16(800°C) 0.20(1000°C) |
|
Tensile strength(mpa)(density as 128kg/m3) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
Chemical composition(%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
AL2O3+SiO2 | 96 | 97 | 99 | 99 | – | |
AL2O3+SiO2+ZrO2 | – | – | – | – | 99 | |
ZrO2 | – | – | – | – | 15-17 | |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O+k2O | <0.5 | <0.5 | 0.2 | 0.2 | 0.2 |
Note: Any Interests and questions, please email us for more information and quotation: inquiry@rsrefractorygroup.com
Common Dimension
Size | 15000*610/1220*10mm | 14400*610/1220*12.5mm |
7200*610/1220*20mm | 7200*610/1220*25mm | |
5000*610/1220*30mm | 4500*610/1220*40mm | |
3600*610/1220*50mm | ||
Package | 1.Carton box outside and plastic bag inside | |
2.Blank woven bag | ||
Remark | The sizes, shapes and package can be customized |
Manufacture Process
Refractory Ceramic Fiber Insulation blanket has white color and regular size with high fire-resistant and insulation. Refractory Ceramic Fiber Blanket for sale can keep good tensile strength in the neutral and oxidizing atmosphere without any binding agent. Rongsheng Kiln Refractory Company is one of the leading ceramic fiber blanket suppliers and manufacturers providing all kinds of shapes and sizes of refractory ceramic fiber blanket for sale at customers’ special request. Email us for more detailed information and quotation: inquiry@rsrefractorygroup.com
Application
- Insulation of domestic cooking and heating applications such as wood stove heaters, ovens, pizza ovens and barbecues.
- Insulation for Rroller kiln, tunnel kiln, shuttle kiln, and other kilns
- Insulation for Industrial furnaces, heating equipment and high temperature pipelines.
- Thermal insulation material for electric power boiler, turbo machine, power plant.
- Wall liners insulation for high temperature reaction equipment and heating equipment in chemical industry.
- Heat insulation of furnace doors, head covers and High temperature filtering materials
- Fireproofing and heat insulation in high buildings.
Property
- Excellent thermal and physical stability up to 1260ºC
- Low thermal conductivity, low thermal capacity.
- Light weight with high resiliency
- High thermal insulation and good thermal shock resistance.
- Excellent sound absorption.
- Fire protection and chemical corrosion resistance.
- Excellent cold handling strength
